PCB version 3.0 printed circuit board layout tool

pcb is free software for designing printed circuit board layouts. It has many features and is capable of professional-quality output. It is available for UN*X operating systems, e.g., GNU/Linux, Mac OS-X, or Cygwin under Windows. pcb was orignally written by Thomas Nau of the University of Ulm, Germany, and is now maintained by harry eaton of the Johns Hopkins University Applied Physics Laboratory, Laurel, Maryland, USA.

PCB 3.0 is a branch of the source code modified to operate under the Tcl/Tk interpreter. Most of the coding for PCB 3.0 was done at MultiGiG, Inc., Scotts Valley, California, by Tim Edwards, Paramesh Santanam, and (working from India, courtesy of SynApps, Inc.), Nishit Patel. The code base is a departure from the original PCB in that a complete Tcl command-line API was concocted for PCB, and the GUI re-written as a Tk script. For the first cut (version 3.0), a fair bit of effort went to ensuring that the GUI looks and acts as much like the original Xlib-based version.

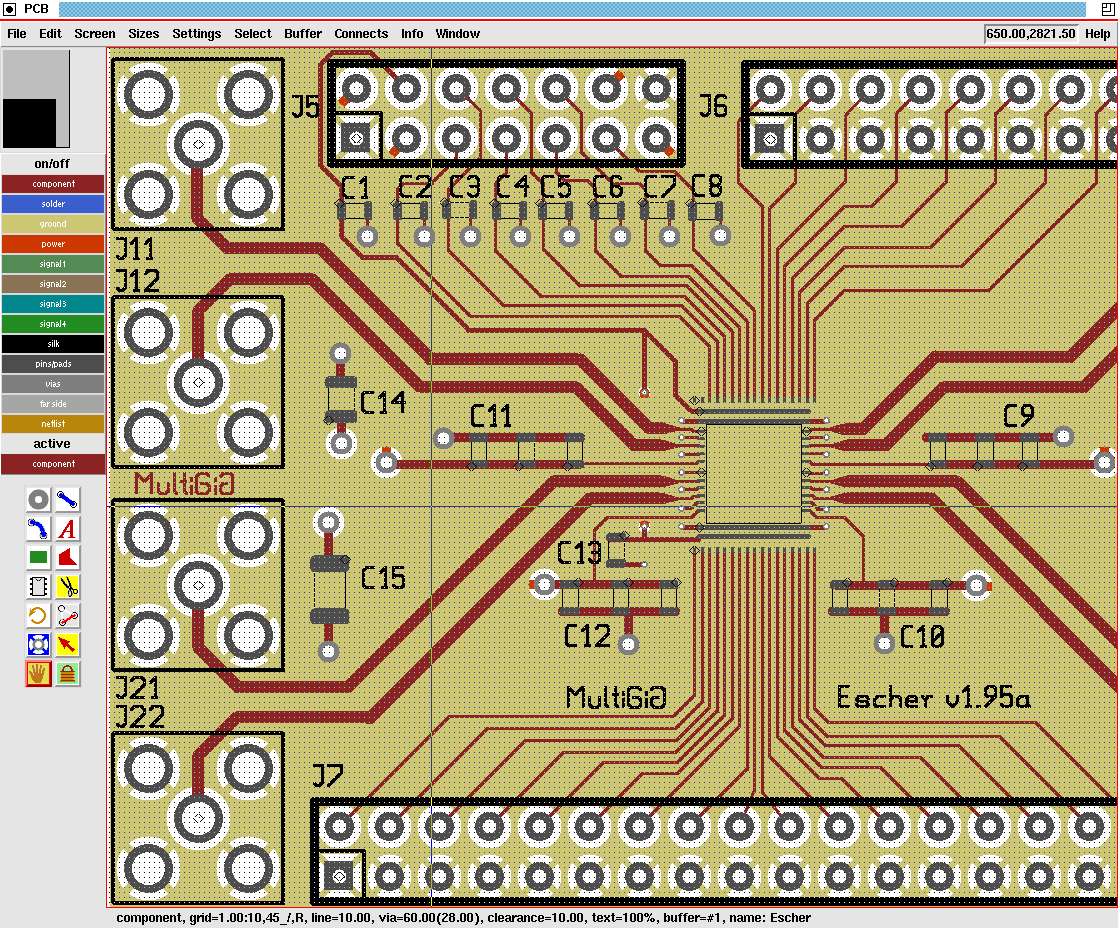

Here is a screen-shot of Tcl-based PCB.

PCB version 3.0 Download

File Revision Size Date
pcb-3.0.98.tgz 98 (2633KB) October 1, 2013 at 3:00am
Git source download:
The Open Circuit Design Git repository may be used for downloads of the most recent PCB source. To use the git server, do:
git clone git://opencircuitdesign.com/pcb-3.0
CVS source download:
The Open Circuit Design anonymous CVS repository may be used for downloads of the most recent PCB source. To use the anonymous CVS, do:
cvs -d :pserver:anonymous@opencircuitdesign.com:/usr/cvsroot login
The anonymous CVS password is "anoncvs ".

After logging in, check out the PCB source with:

cvs -d :pserver:anonymous@opencircuitdesign.com:/usr/cvsroot checkout pcb-3.0
The module name is "pcb"; this module name may be used in place of the name "pcb-3.0" above.

Compiling and Installing PCB version 3.0

PCB 3.0 is beta code. Compiled normally (i.e., without the Tcl interface), it should compile and run like the long-standing standard versions 1.6 (beta) and 1.7 (alpha).

The Tcl/Tk-based version of PCB compiles and runs by default.

The compilation procedure should be immediately recognizable to anyone familiar with GNU autoconf:

./configure
make
make install

PCB version 3.0 for Windows

(to be done)

Revision information on PCB version 3.0

  1. May 7, 2006 at 9:14pm
    Initial revision of source distribution on CVS at OpenCircuitDesign (Revision 86).
    Also: Corrections to the handling of output scale for PostScript output (was divided by 2), and added handling of output offset in the Print dialog. Corrected errors in the Tcl "print" command for offset and scale. Note that this is a global offset, and applies to all output devices. There ought to be an equivalent handling of device margins (part of the device structure).
  2. May 26, 2006 at 2:40am
    2006-05-25 16:13 tim A number of changes: 1) Added "clearance" and "selected_clearance" command options for "line" and "via" commands, and a "clearance" option for the "pin" command. 2) Changed clearance setting behavior so that a clearance of zero can be specified (clearances between zero and the minimum DRC spacing rule are not allowed) 3) Changed the DRC rules so that a clearance of zero is not reported as a DRC violation. 4) Reduced many of the "minimum" contants to reflect the capabilities of advanced printed circuit board manufacturing.
  3. June 14, 2006 at 2:40am
    2006-06-14 01:04 eric Cleaned up build files Removed un-needed Makefiles Added test RPM spec file
    Also: Removed files which are generated
    Also: Removed building of pad.* files in doc folder as they seem to no longer exist
    Also: Updated RPM spec file First attempt at fixing rpath problem on x86_64
  4. June 15, 2006 at 2:40am
    Removed files which are generated
    Also: Removed building of pad.* files in doc folder as they seem to no longer exist
    Also: Updated RPM spec file First attempt at fixing rpath problem on x86_64
    Also: 2006-06-14 11:36 tim Removed all references to the unused program "tgif".
  5. June 16, 2006 at 2:40am
    2006-06-15 11:38 tim Changed "SCROLL_TIME" to a sane value.
  6. June 20, 2006 at 2:40am
    2006-06-19 13:10 tim Corrected the connectivity-finding routine to connect vias with zero clearance to surrounding polygons.
  7. June 21, 2006 at 2:40am
    2006-06-20 09:41 tim Added the capability to handle plugged vias. There is no output format for plugged vias (yet), but the display works and DRC handles them correctly.
    Also: Added output drill file for plugged vias.
  8. October 24, 2006 at 2:40am
    2006-10-23 11:11 tim Some changes to attempt to make the Tcl/Tk libraries work correctly, esp. for Solaris as reported by Hans Albertsson.
  9. November 5, 2006 at 2:40am
    2006-11-04 08:06 tim Changed the parser so that it accepts (although does not handle) the 6-entry DRC line from pcb20060822.
  10. November 6, 2006 at 2:40am
    Implemented minimum drill width to match the syntax used by pcb20060822 (I have decided *not* to implement minimum annular ring until I determine that any vendor has a different rule above and beyond minimum route width).
  11. February 17, 2012 at 3:00am
    Corrections to the compilation, similar to changes made long ago for other programs, making tkcon.tcl compatible with different versions of wish (e.g., wish8.5), and able to find and use the version that the tool was compiled to.
    Also: Update at Thu Feb 16 11:54:06 PST 2012 by tim
    Also: Merge branch 'master' into work
  12. August 16, 2013 at 3:00am
    Minor---cleanup of some compile-time files that got checked in with the rest.
  13. October 1, 2013 at 3:00am
    Removed a bunch of files by doing "make distclean"

Features:

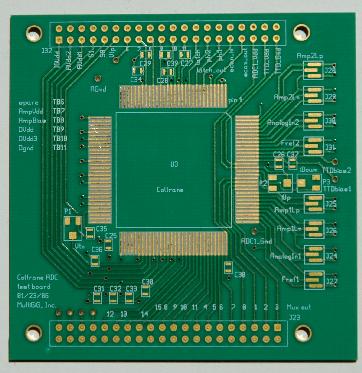

Photo Gallery!

Tcl/Tk Command Reference

Version 3.0 of PCB can be compiled as an extension of the Tcl/Tk interpreter, in which case every capability of PCB (at least, every one that we have thought of so far) is a Tcl command-line command. The GUI is built from a Tk script which executes these commands as callback functions from the menu items. The key macro and mouse button interface basically bypasses the interpreter and is unaffected.

For now, the list of Tcl command-line commands for PCB is in a text file: commands_sorted.txt. Hopefully I can get around to organizing and beautifying the list, and checking for correctness.

For questions regarding the Tcl/Tk-based branch of PCB, please contact: tim@opencircuitdesign.com
For questions regarding the original PCB code, please contact: harry.eaton@jhuapl.edu
